Specifications

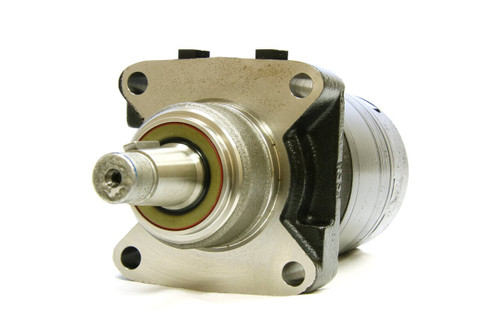

The Parker TG Series TG0310US080AAAA is a robust medium-torque gerotor hydraulic motor providing 310 cm³/r (18.9 in³/r) displacement with a 1.25" tapered shaft and standard wheel mount configuration optimized for direct-drive wheel motor applications. The motor's tapered shaft design with standard wheel mount provides simplified installation and positive torque transfer for mobile equipment requiring integrated wheel drive solutions, while delivering 8,184 in-lbs continuous torque for demanding propulsion and positioning applications.
Technical Specifications:
- Displacement: 310 cm³/r (18.9 in³/r)
- Max. Continuous Flow: 20 GPM (25 GPM intermittent)
- Max. Continuous Speed: 303 RPM
- Max. Continuous Torque: 8,184 in-lbs (10,817 in-lbs intermittent)
- Shaft: 1.25" tapered shaft
- Mount: Standard wheel mount
- Port Configuration: #10 ORB ports
- Rotation: Standard
- Seals: Standard
- Fluid Type: Mineral oil (standard)
- Genuine Parker TG0310US080AAAA
Common Applications:
- Skid steer loader wheel drives and propulsion systems
- Trencher track drive systems for utility work
- Mini walk-behind skid steer wheel motors
- Sweeper drive wheels for industrial cleaning equipment
- Specialty harvester ground drive systems
