Specifications
Alternate part numbers: PEK 17J
Replaces Muncie PK17-2BSBB/PK117-02BSBB
Standard features include:
- SAE-B-2&4 bolt mounting flange, SAE-B-spline shaft, both side and rear ports and setup for pump/motor dual rotation applications
- A wide range of porting, mounting, and shaft options available
- Roller bearing design in a compact, small frame size
- Doweled and high-strength cast iron construction
- Low weight: 34.5 pounds with a 2” gear, Type II
- Flows up to 39 GPM
- Working pressure up to 3000 PSI
- Speeds up to 2400 RPM
- Cubic inch displacements from 1.00 through 4.00
- Special ring seals and pressure-balanced wear plates maintain high pump and motor
- efficiency throughout all operating ranges
- 100% factory tested per application specifications
Specifications:

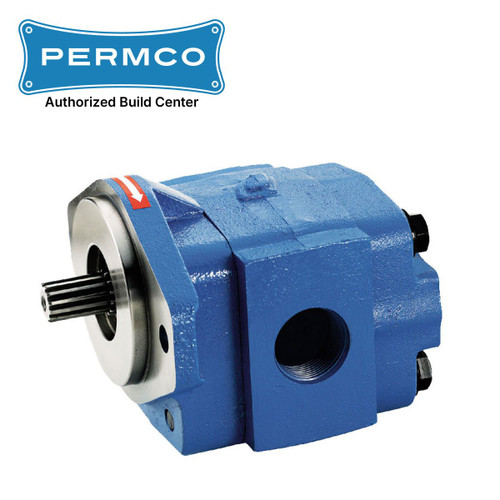

- Permco Dual Ported Pump
- 2/4 Bolt Mount, SAE B - 7/8”-13T Spline Shaft
- 1-1/4” ORB Side & 1” ORB Rear Ports
- 2” Gear Width
- 4.00 cu in. per rev
- 15.0GPM @ 1000 RPM @ 2500 PSI
