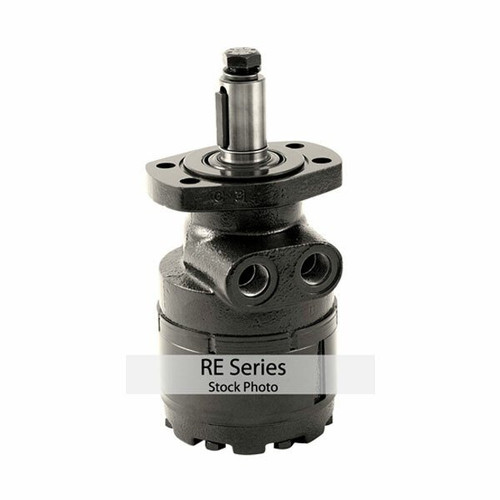

White Roller Stator Motor 500470W3120AEAAA

White Roller Stator Motor – 500470W3120AEAAA is a wheel-drive RE 500 Series motor fitted with an integral 1,500 psi relief valve — built for mobile equipment running direct wheel drives where pressure spikes from terrain, load shifts, or sudden stops could otherwise damage the motor or downstream components. With 465 cm³/rev displacement and 9,700 in-lbs continuous torque, it drives heavy mobile equipment through demanding propel cycles where both traction force and overpressure protection are required. This motor replaces 500470W3120ZEAAA.

Specifications

• Series: RE 500
• Displacement: 465 cm³/rev [28.3 in³/rev]
• Flow: 20 GPM Continuous (24 GPM Inter)
• Max. Speed: 160 RPM (200 RPM Inter)
• Torque: 9,700 in-lbs Continuous (10,475 in-lbs Inter)
• Max. Pressure: 2,500 psi Continuous (2,750 psi Inter)
• Mount: 4-Hole Wheel Mount
• Shaft: 1-¼" Straight
• Ports: SAE
• Relief: 1,500 psi
• Genuine White Roller Stator 500470W3120AEAAA

Common Applications

• Heavy mobile equipment wheel drives requiring integral overpressure protection
• Forestry and construction propel systems subject to high-impact loading
• Ground drive systems on large agricultural and material handling machinery
