Specifications

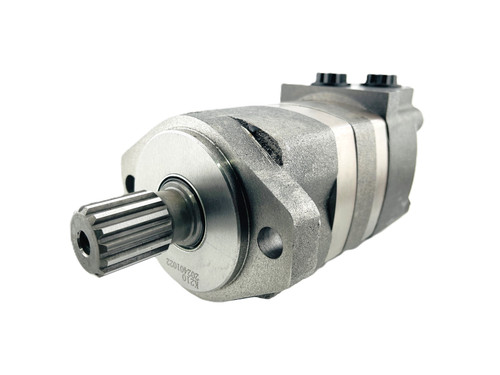

Char Lynn Hydraulic Motor – 104-1143 delivers reliable high torque performance for demanding mobile and industrial applications requiring substantial power at low speeds. With 393.8 cm³/r displacement and 6,840 in-lbs continuous torque, this 2000 Series motor powers skid steer equipment, brush cutting systems, and heavy harvesting machinery.
Specifications:
- Displacement: 393.8 cm³/r (24.03 in³/r)
- Flow: 20 GPM Continuous (30 GPM Inter)
- Max. Speed: 191 RPM
- Torque: 6,840 in-lbs Continuous (8,170 in-lbs Inter)
- Mount: 2-Bolt Flange
- Shaft: 1.00" Keyed with 1/4"-20 Threaded Hole in Shaft End
- Ports: #10 ORB Case Drain; #4 ORB Case Drain Port
- Seals: Standard
- Genuine Char Lynn 104-1143
Common Applications:
- Skid steer attachments
- Brush cutters and mowers
- Harvesting equipment
