Specifications

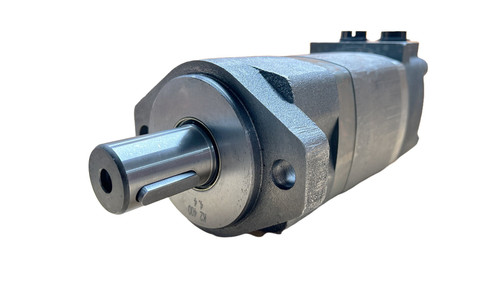

Char Lynn Hydraulic Motor – 104-1025 delivers reliable high torque performance for demanding mobile and industrial applications requiring substantial power. With 158.1 cm³/r displacement and 4,040 in-lbs continuous torque, this 2000 Series motor powers skid steer equipment, harvesting machinery, and brush cutting systems.
Specifications:
- Displacement: 158.1 cm³/r (9.65 in³/r)
- Flow: 20 GPM Continuous (30 GPM Inter)
- Max. Speed: 477 RPM
- Torque: 4,040 in-lbs Continuous (5,040 in-lbs Inter)
- Mount: 2-Bolt Flange
- Shaft: 1.25" Keyed with 3/16"-16 Threaded Hole in Shaft End
- Ports: #10 ORB Case Drain; #4 ORB Case Drain Port
- Seals: Standard
- Genuine Char Lynn 104-1025
Common Applications:
- Skid steer attachments
- Brush cutters and mowers
- Harvesting equipment
